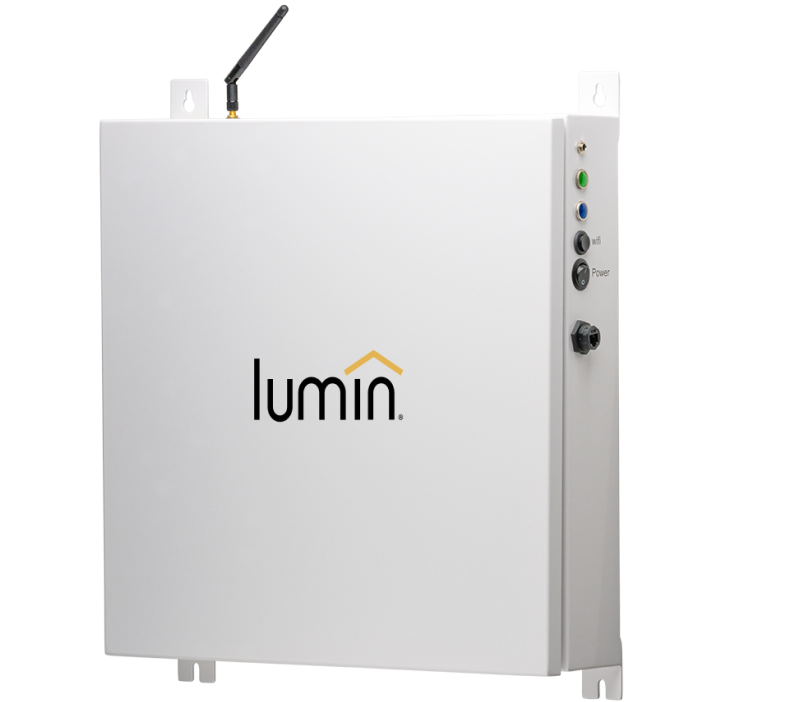

Smart electrical panel
The Lumin Smart Panel transforms any standard electrical panel into an affordable smart panel capable of providing real-time energy consumption data and circuit-level control while boosting the performance of home microgrids through advanced load control and energy automation.
⚡Starting at $3150

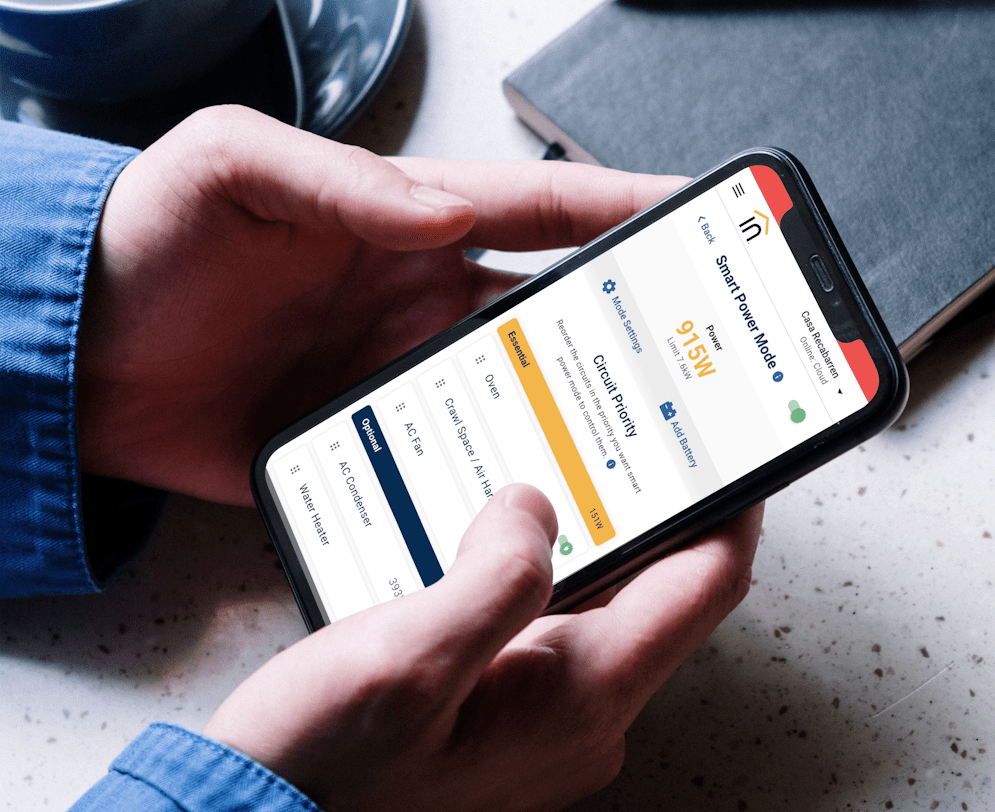

Smart Power Mode
⚡Starting at $3150
Technical Specifications
Installation
Type
Wall-mounted. Indoor and outdoor versions available.
Wall-mounted. Indoor and outdoor versions available.
Installer Qualification
Local Electrical Codes and Lumin Installer Certification
Local Electrical Codes and Lumin Installer Certification
Time Required
1.5-4 hours
1.5-4 hours
NEMA Rating (Outdoor)
Type 3R
Type 3R
Weight
12 kg (27 lb)
12 kg (27 lb)
Warranty
10-Year Limited
10-Year Limited
Compatible Equipment
All Makes/Models/Brands of Electrical Panels and Breakers
All Makes/Models/Brands of Electrical Panels and Breakers
Electrical system
AC Voltage
120/240 VAC Split-Phase, 50-60 Hz
120/240 VAC Split-Phase, 50-60 Hz
Supply Breaker Rating
15-20 A (non-GFCI)
15-20 A (non-GFCI)
Breaker Types
Single Pole (1 Line) and Dual Pole (2 Lines)
Single Pole (1 Line) and Dual Pole (2 Lines)
Current Transformers
2 Split-Core 200 A Included, Up to 2 Additional Available
2 Split-Core 200 A Included, Up to 2 Additional Available
Connectivity & Access
Connection Options
Wi-Fi or Ethernet,
Wi-Fi or Ethernet,
Applications
i0S, Android, and Web
i0S, Android, and Web

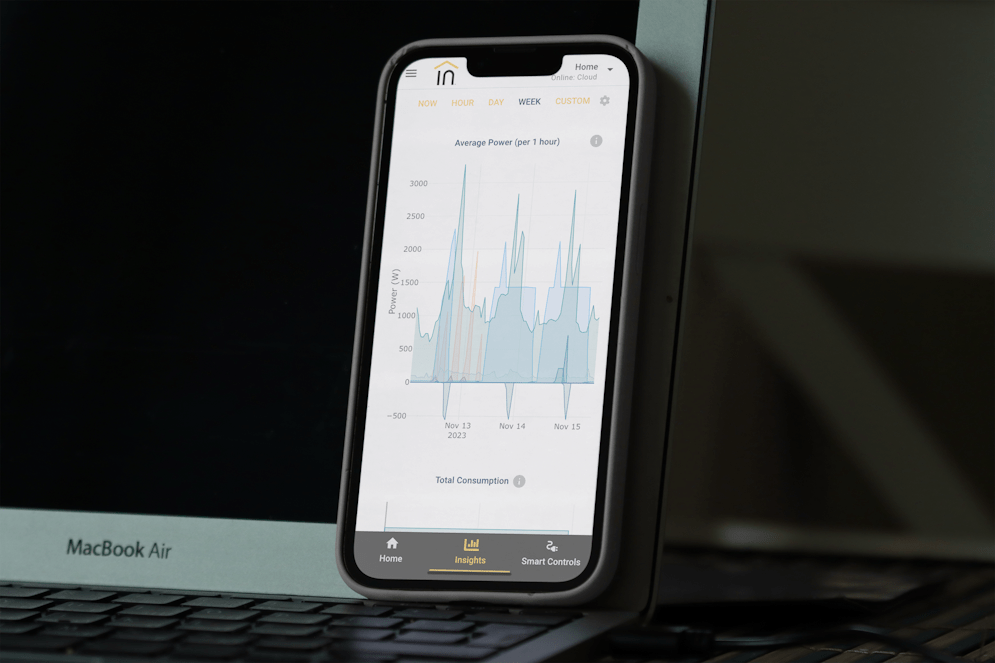

Data
1-Second Granularity (Averaged from 16 kHz)
1-Second Granularity (Averaged from 16 kHz)

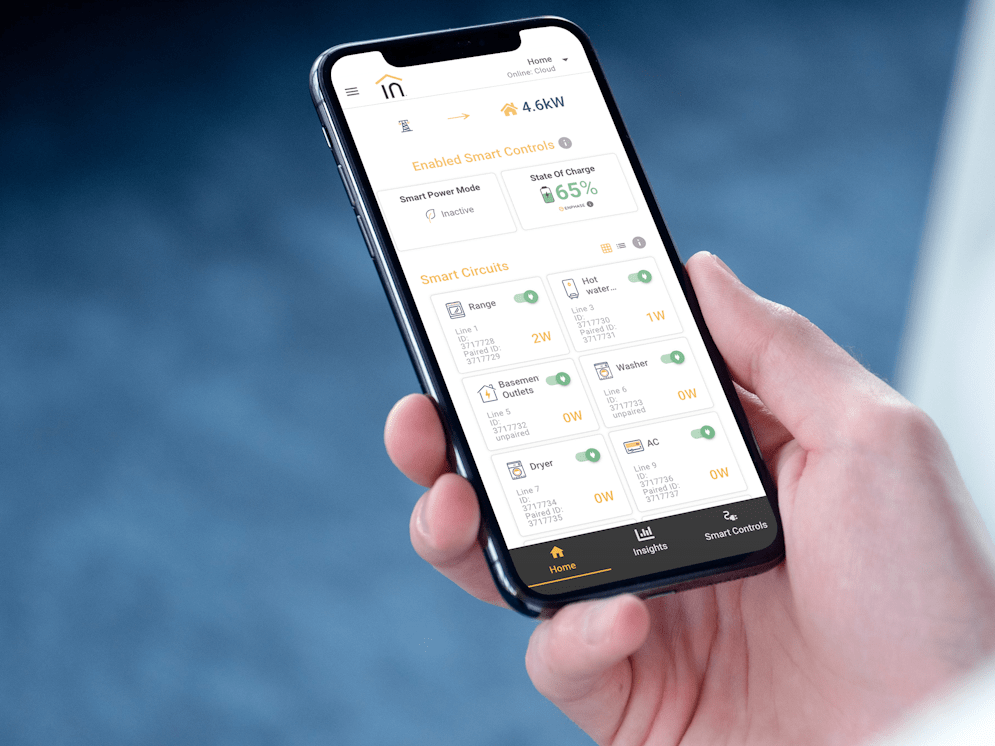

Load Controls
Manually/Directly, Automated Schedules, and Automated
Manually/Directly, Automated Schedules, and Automated
Looking for technical documentation?
Our rich knowledge base has user manuals, setup documentation, and troubleshooting articles.
Learn more
Competitive Landscape
Lumin provides the most versatile platform to generate value from energy assets at the grid edge.
![]() |
and
|
|
---|---|---|
Circuit and Appliance | ||
Circuit and Appliance |
|
|
Load Shedding | ||
Load Shedding |
|
|
Demand Management | ||
Demand Management |
|
|
Elimination of Protected Loads Panel | ||
Elimination of Protected Loads Panel |
|
|
Time of Use Compatible | ||
Time of Use Compatible |
|
|
Compatible with Any Panel | ||
Compatible with Any Panel |
|
|
Project Profiles
Questions? We’ve got answers.
Here you can find answers to the most common questions about Lumin and our products. What safety certifications does the system have? ... And much more.
More answers
-
How does Lumin measure and control my energy consumption?
Lumin measures current and voltage through proprietary sensor boards and provides control through relays that are housed within the Lumin Smart Panel (LSP) enclosure.
-
Is the LSP safe?
Yes, the LSP adheres to all relevant National Electric Code requirements and has been certified by a Nationally Recognized Testing Laboratory (NRTL) to the standards of UL 916 and 61010.
-
Does the LSP come with a warranty?
Yes, the LSP comes with a ten-year limited warranty.
-
What are the system requirements for an LSP?
The LSP requires approximately 17”X24” of space above/below the circuit breaker panel or 17”X17” of space to the left/right of the circuit breaker panel that is free of any obstructions (conduits, outlets, etc.) The LSP is required to be connected to the internet either via homeowner WiFi or Ethernet cable.
-
How is the LSP installed?
The LSP is installed to perform in series with your existing circuit breaker panel. To learn more about the installation process, please go to Lumin support solutions
-
What patents cover the LSP?
U.S. Patent No. 10,109,987
U.S. Patent No. 10,467,712
Canadian Patent No. 3,050,702
U.S. and International Patent Applications Pending
